QUICKCLIPS

$1.55

Clear
Discount for bulk purchase:
1-24 $1.55 ea
25-99 $1.35 ea
100-499 $1.30 ea
500-999 $1.20 ea
1000 +4999 $1.05 ea
+5000 $0.95 ea
10,000 +above (please contact us for pricing)
Description

Features

  • All stainless steel construction for strength and anti corrosion

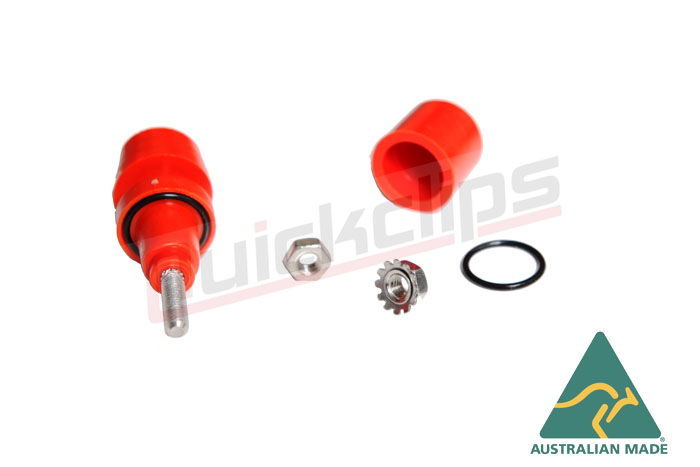

  • Comes with stainless nut and kep nut
  • Easy release of wires
  • Wires will not pull out
  • Fit up to 5 ignites in single clip
  • Durable waterproof

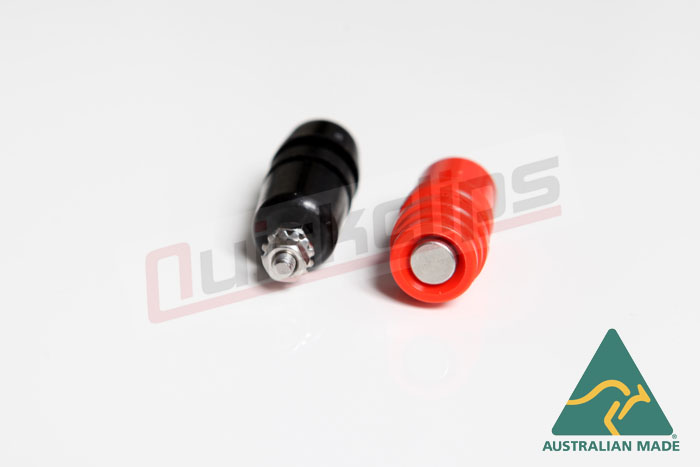

  • Comes in red and black:
  • Easy and inexpensive to replace standard mini clips
  • Rugged design can handle the harsh environment expected at a display
  • Fit and finish high quality design
  • Universal design for PCB mount or hardwired
  • These are the actual discount prices
  • Discount quantity on total order
  • NO additional discount
  • 10,000 +above (please contact us for pricing)
  • Optional solder lug $0.10 EA

specification

  • Overall diameter .506 in (12.85 mm)
  • Overall length 1.480 inc  (37.59 mm)
  • Height above mounting surface .5995 inc (15.23 mm)
  • Depth below mounting surface .866 inc (22 mm)
  • Mounting hole diameter .315 inc  (8 mm)
  • Mounting surface thickness .0315 in-.1187  (0.8mm-4.75 mm)
  • Material Stainless steel spring, washer, nut and kep nut W/3 mm thread
  • Plastic Strength nylon
  • Shipping weight .215 ounces (6.1 grams)
  • Available colors Red and black sold individually
  • Note this item is designed for temporary low voltage (48 volts or less)Center post Stainless steel
Remember these are stainless steel (not tin plated brass)

QuickClips-2D

Additional information

Weight .06 kg
Dimensions N/A
Colour

Red, Black
